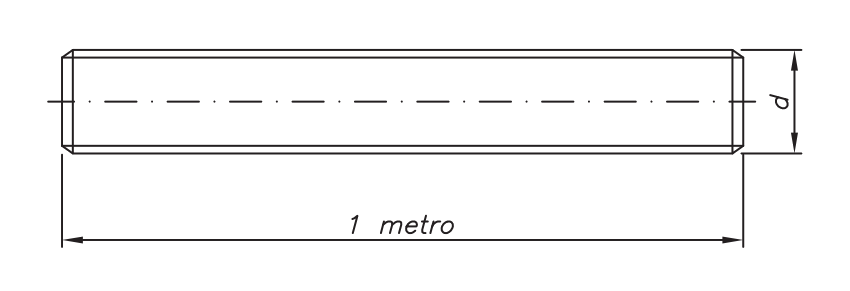

BARRA ROSCADA 1 METRO INOX 316 ROSCA UNC/BSW
MATERIAL: AÇO INOXIDÁVEL - 316
DIMENSÕES: ASME B16.5
ROSCA: UNC - ASME B1.1 | BSW - DIN 11
| DIÂMETRO NOMINAL ↓ | rosca/FPP | Cotar |
|---|---|---|
| 3/16 | BSW - 24 | |
| 1/4 | UNC - 20 | |
| 5/16 | UNC - 18 | |
| 3/8 | UNC - 16 | |
| 7/16 | UNC - 14 | |
| 1/2 | UNC - 13 | |
| 1/2 | BSW - 12 | |
| 9/16 | UNC - 12 | |
| 5/8 | UNC - 11 | |
| 3/4 | UNC - 10 | |
| 7/8 | UNC - 9 | |
| 1 | UNC - 8 | |
| 1-1/8 | UNC - 7 | |
| 1-1/4 | UNC -7 | |
| 1-3/8 | UNC -6 | |
| 1-1/2 | UNC - 6 |
