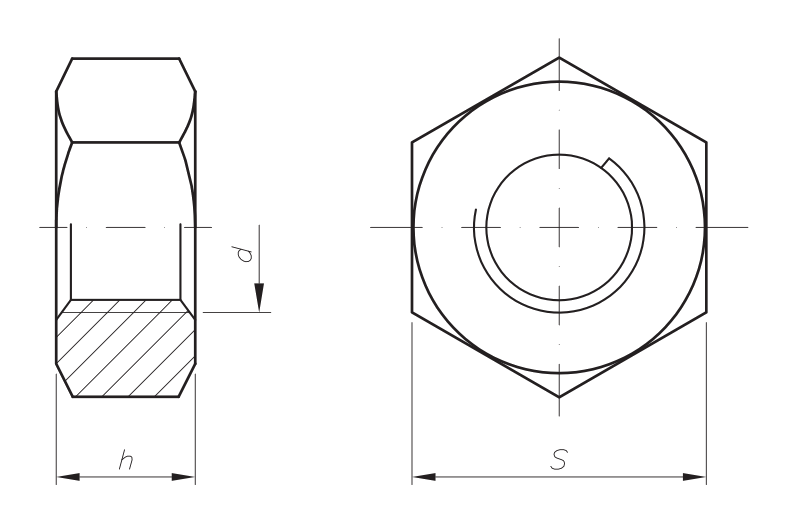

PORCA SEXTAVADA GRAU 2 ROSCA UNC/BSW
MATERIAL: AÇO CARBONO - GRAU 2
DIMENSÕES: ASME B18.2.2
ROSCA: UNC - ASME B1.1 | BSW - DIN 11
| DIÂMETRO NOMINAL ↓ | rosca/FPP | h (Altura) máx. | s (Chave) máx. pol. | s (Chave) máx. mm | Cotar |
|---|---|---|---|---|---|
| 1/8 | BSW-40 | 2,9 | 1/4 | 6,35 | |
| 5/32 | BSW-32 | 2,9 | 1/4 | 6,35 | |
| 5/32 | BSW-32 | 3,3 | 5/16 | 7,93 | |
| 3/16 | BSW-24 | 4,2 | 5/16 | 7,93 | |
| 3/16 | BSW-24 | 4,2 | 3/8 | 9,52 | |
| 1/4 | UNC-20 | 5,2 | 3/8 | 9,52 | |
| 1/4 | UNC-20 | 5,74 | 7/16 | 11,11 | |
| 5/16 | UNC-18 | 6,93 | 1/2 | 12,7 | |
| 3/8 | UNC-16 | 8,56 | 9/16 | 14,27 | |
| 7/16 | UNC-14 | 9,78 | 5/8 | 15,87 | |
| 7/16 | UNC-14 | 9,78 | 11/16 | 17,46 | |
| 1/2 | UNC-13 | 11,38 | 3/4 | 19,05 | |
| 1/2 | BSW-12 | 11,38 | 3/4 | 19,05 | |
| 9/16 | UNC-12 | 12,6 | 7/8 | 22,22 | |
| 5/8 | UNC-11 | 14,2 | 15/16 | 23,81 | |
| 3/4 | UNC-10 | 16,89 | 1-1/8 | 28,57 | |
| 7/8 | UNC-9 | 19,71 | 1-5/16 | 33,33 | |
| 1 | UNC-8 | 22,53 | 1-1/2 | 38,1 | |
| 1-1/8 | UNC-7 | 25,37 | 1-11/16 | 42,86 | |
| 1-1/4 | UNC-7 | 27,78 | 1-7/8 | 47,62 | |
| 1-3/8 | UNC-6 | 30,63 | 2-1/16 | 52,38 | |
| 1-1/2 | UNC-6 | 33,45 | 2-1/4 | 57,15 | |
| 1-3/4 | UNC-5 | 39,01 | 2-5/8 | 66,67 | |
| 2 | UNC-4-1/2 | 44,67 | 3 | 76,2 | |
| 2-1/4 | UNC-4-1/2 | 50 | 3-3/8 | 85,72 | |
| 2-1/2 | UNC-4 | 55,56 | 3-3/4 | 95,25 | |
| 2-3/4 | UNC-4 | 61,11 | 4-1/8 | 104,77 | |
| 3 | UNC-4 | 66,67 | 4-1/2 | 114,3 | |
| 3-1/4 | UNC-4 | 73,07 | 4-7/8 | 123,82 | |
| 3-1/2 | UNC-4 | 78,74 | 5-1/4 | 133,35 |
