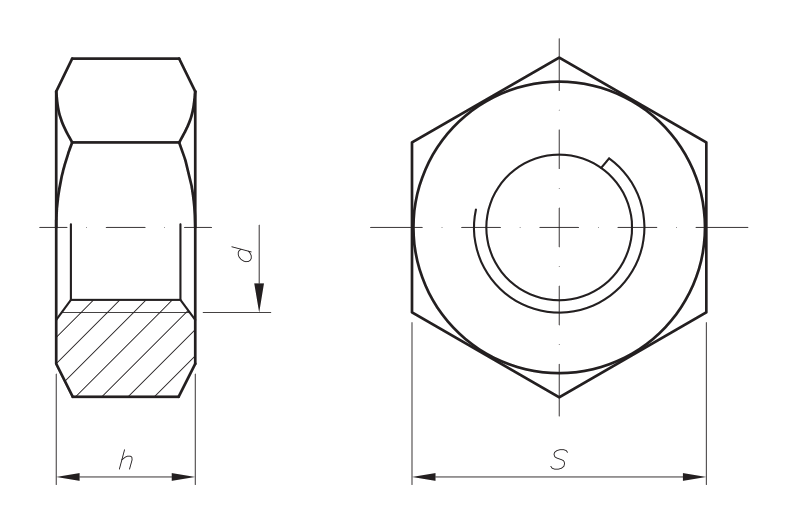

PORCA SEXTAVADA GRAU 5 ROSCA UNF/UNS
MATERIAL: AÇO CARBONO - GRAU 5
DIMENSÕES: ASME B18.2.2
ROSCA: UNF / UNS - ASME B1.1
| DIÂMETRO NOMINAL ↓ | rosca/FPP | h (Altura) máx. | s (Chave) máx. pol. | s (Chave) máx. mm | Cotar |
|---|---|---|---|---|---|
| 1/4 | UNF-28 | 5,74 | 7/16 | 11,11 | |
| 5/16 | UNF-24 | 6,93 | 1/2 | 12,7 | |
| 3/8 | UNF-24 | 8,56 | 9/16 | 14,27 | |
| 7/16 | UNF-20 | 9,78 | 5/8 | 15,87 | |
| 7/16 | UNF-20 | 9,78 | 11/16 | 17,46 | |
| 1/2 | UNF-20 | 11,38 | 3/4 | 19,05 | |
| 9/16 | UNF-18 | 12,6 | 7/8 | 22,22 | |
| 5/8 | UNF-18 | 14,2 | 15/16 | 23,81 | |
| 3/4 | UNF-16 | 16,89 | 1-1/8 | 28,57 | |
| 7/8 | UNF-14 | 19,71 | 1-5/16 | 33,33 | |
| 1 | UNS-14 | 22,53 | 1-1/2 | 38,1 | |
| 1 | UNF-12 | 22,53 | 1-1/2 | 38,1 | |
| 1-1/8 | UNF-12 | 25,37 | 1-11/16 | 42,86 | |
| 1-1/4 | UNF-12 | 27,78 | 1-7/8 | 47,62 | |
| 1-3/8 | UNF-12 | 30,63 | 2-1/16 | 52,38 | |
| 1-1/2 | UNF-12 | 33,45 | 2-1/4 | 57,15 |
