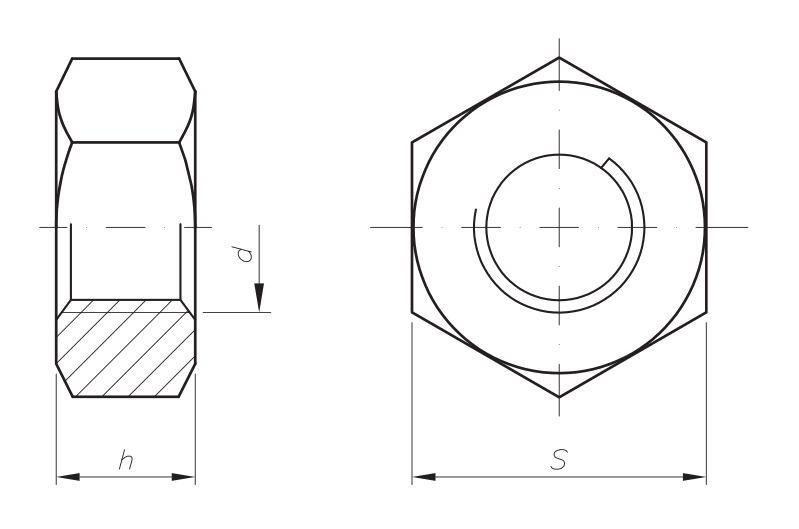

PORCA SEXTAVADA LATÃO ROSCA UNC/BSW
MATERIAL: LATÃO
DIMENSÕES: ASME B18.2.2
ROSCA: UNC - ASME B1.1 | BSW - DIN 11
| DIÂMETRO NOMINAL ↓ | rosca/FPP | h (Altura) máx. | s (Chave) máx. pol. | s (Chave) máx. mm | Cotar |
|---|---|---|---|---|---|
| 1/8 | BSW-40 | 2,9 | 1/4 | 6,35 | |
| 5/32 | BSW-32 | 2,9 | 1/4 | 6,35 | |
| 3/16 | BSW-24 | 4,2 | 5/16 | 7,93 | |
| 1/4 | UNC-20 | 5,74 | 7/16 | 11,11 | |
| 5/16 | UNC-18 | 6,93 | 1/2 | 12,7 | |
| 3/8 | UNC-16 | 8,56 | 9/16 | 14,27 | |
| 1/2 | UNC-13 | 11,38 | 3/4 | 19,05 | |
| 1/2 | BSW-12 | 11,38 | 3/4 | 19,05 | SLW12 |
| 5/8 | UNC-11 | 14,2 | 15/16 | 23,81 | |
| 3/4 | UNC-10 | 16,89 | 1-1/8 | 28,57 | |
| 7/8 | UNC-9 | 19,71 | 1-5/16 | 33,33 | |
| 1 | UNC-8 | 22,53 | 1-1/2 | 38,1 |
