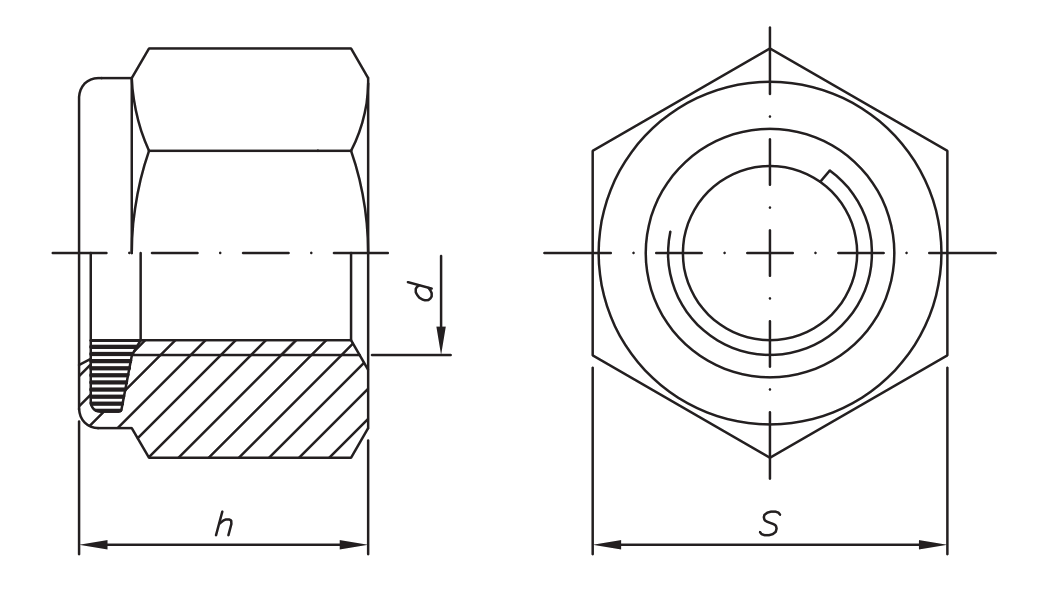

PORCA SEXTAVADA TRAVANTE / AUTOFRENO GRAU 2 ALTA ROSCA UNC/BSW
MATERIAL: AÇO CARBONO - GRAU 2
DIMENSÕES: IFI100 (ASME B18.16.6)
ROSCA: UNC - ASME B1.1 | BSW - DIN 11
| DIÂMETRO NOMINAL ↓ | rosca/FPP | h (Altura) máx. | s (Chave) máx. pol. | s (Chave) máx. mm | Cotar |
|---|---|---|---|---|---|
| #10 | UNC-24 | 6,32 | 3/8 | 9,52 | |
| 1/4 | UNC-20 | 8,33 | 7/16 | 11,11 | |
| 5/16 | UNC-18 | 9,11 | 1/2 | 12,7 | |
| 3/8 | UNC-16 | 11,88 | 9/16 | 14,27 | |
| 7/16 | UNC-14 | 11,88 | 5/8 | 15,87 | |
| 1/2 | UNC-13 | 15,46 | 3/4 | 19,05 | |
| 1/2 | BSW-12 | 15,46 | 3/4 | 19,05 | |
| 9/16 | UNC-12 | 16,66 | 7/8 | 22,22 | |
| 5/8 | UNC-11 | 19,43 | 15/16 | 23,81 | |
| 3/4 | UNC-10 | 22,6 | 1-1/16 | 26,98 | |
| 7/8 | UNC-9 | 25,37 | 1-1/4 | 31,75 | |
| 1 | UNC-8 | 27,38 | 1-7/16 | 36,51 | |
| 1-1/8 | UNC-7 | 30,55 | 1-5/8 | 41,27 | |
| 1-1/4 | UNC-7 | 36,11 | 1-13/16 | 46,03 | |
| 1-1/2 | UNC-6 | 41,65 | 2-3/16 | 55,56 |
