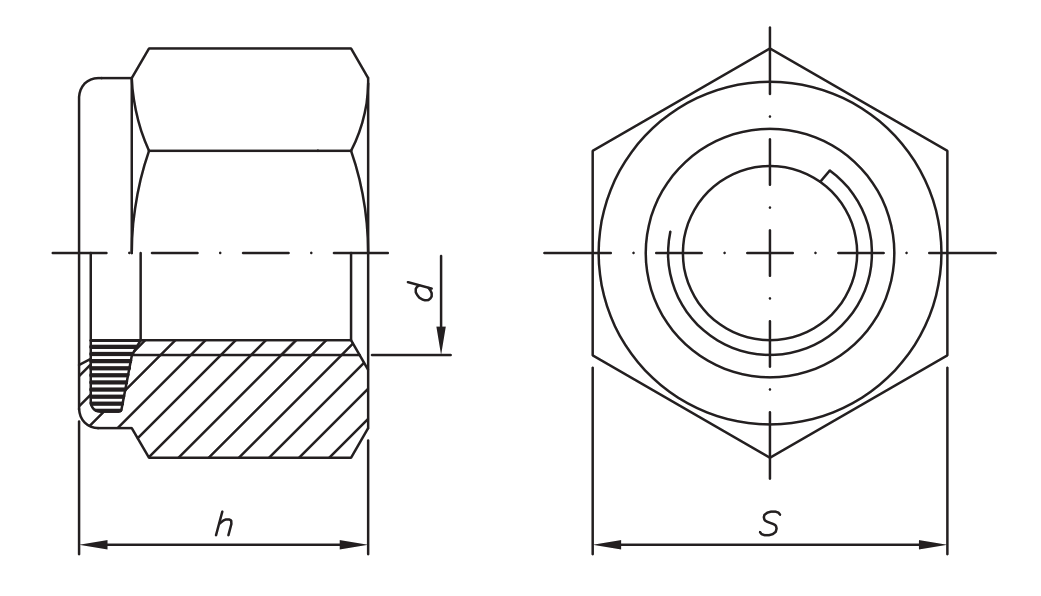

PORCA SEXTAVADA TRAVANTE / AUTOFRENO GRAU 2 ALTA ROSCA UNF/UNS
MATERIAL: AÇO CARBONO - GRAU 2
DIMENSÕES: IFI100 (ASME B18.16.6)
ROSCA: UNF / UNS - ASME B1.1
| DIÂMETRO NOMINAL ↓ | rosca/FPP | h (Altura) máx. | s (Chave) máx. pol. | s (Chave) máx. mm | Cotar |
|---|---|---|---|---|---|
| #10 | UNF-32 | 6,32 | 3/8 | 9,52 | |
| 1/4 | UNF-28 | 8,33 | 7/16 | 11,11 | |
| 5/16 | UNF-24 | 9,11 | 1/2 | 12,7 | |
| 3/8 | UNF-24 | 11,88 | 9/16 | 14,27 | |
| 7/16 | UNF-20 | 11,88 | 5/8 | 15,87 | |
| 1/2 | UNF-20 | 15,46 | 3/4 | 19,05 | |
| 9/16 | UNF-18 | 16,66 | 7/8 | 22,22 | |
| 5/8 | UNF-18 | 19,43 | 15/16 | 23,81 | |
| 3/4 | UNF-16 | 22,6 | 1-1/16 | 26,98 | |
| 7/8 | UNF-14 | 25,37 | 1-1/4 | 31,75 | |
| 1 | UNS-14 | 27,38 | 1-7/16 | 36,51 | |
| 1 | UNF-12 | 27,38 | 1-7/16 | 36,51 |
